Code Vulnerabilities in NSA Application Revealed

TL;DR overview

• Sonar's security research revealed code vulnerabilities in an application published by the NSA, illustrating that even security-focused government agencies can inadvertently ship code with exploitable weaknesses.
• The findings demonstrate the universal applicability of automated static code analysis—no organization, regardless of its security expertise, is immune to code-level vulnerabilities.
• Vulnerabilities found include common patterns such as input validation failures and unsafe API usage that SonarQube's static analysis rules are specifically designed to detect.
• This research supports the broader argument for mandatory automated code scanning in government software development—tools like SonarQube can catch these issues before code is publicly released.

Emissary is a P2P based data-driven workflow engine that runs in a heterogeneous possibly widely dispersed, multi-tiered P2P network of compute resources. The application’s Java source code is distributed by the official GitHub repository of the U.S. National Security Agency (NSA). An interesting pick for our research team to look at its code security.

In our analysis, we discovered several code vulnerabilities in Emissary version 5.9.0. A combination of these vulnerabilities allows remote attackers to execute arbitrary system commands on any Emissary server. All in all, this may lead to the compromise of the whole P2P network.

In this blog post we analyze the technical root cause of three different security issues and demonstrate how attackers could exploit these. We reported all issues responsibly to the affected vendor who released multiple security patches to protect all users against the most severe vulnerabilities.

Impact

During the analysis of Emissary 5.9.0 we found the following code vulnerabilities that enable different ways to attack the application:

• Code Injection (CVE-2021-32096)
• Arbitrary File Upload (CVE-2021-32094)
• Arbitrary File Disclosure (CVE-2021-32093)
• Arbitrary File Delete (CVE-2021-32095)
• Reflected Cross-site-Scripting (CVE-2021-32092)

Access to the web application (and its vulnerable features) is protected by HTTP Digest Authentication. By default, there is only one administrator account that has access to the web application. However, the web application is vulnerable to Cross-Site Request Forgery (CSRF) attacks. This allows an attacker to abuse the browser of an authenticated victim to manipulate the state of the web application. For example, the CSRF vulnerability can be combined with the Code Injection vulnerability to achieve remote code execution. You can find out more about CSRF and how it can be exploited by attackers in our previous blog post.

For demonstration purposes we’ve created a short video that shows how quick and easy a server is compromised.

Technical Analysis

In the following, we look at the root cause of three vulnerabilities in the source code of Emissary. First we introduce the Code Injection vulnerability that can be exploited via CSRF. In the next step, we analyse two vulnerabilities (Arbitrary File Disclosure, Cross-site Scripting) that can be combined by an attacker to extract the administrator credentials of the HTTP Digest Authentication used by Emissary.

Remote Ruby Code Execution (CVE-2021-32096)

The administration area of Emissary includes a console feature to evaluate Ruby code. Since the entire web application does not use CSRF tokens, an attacker can execute arbitrary Ruby code on the server through the browser of a logged-in administrator. Let’s have a look at the source code.

src/main/java/emissary/server/mvc/ConsoleAction.java

 47   @POST
 48   @Path("/Console.action")
 49   @Produces(MediaType.TEXT_PLAIN)
 50   public Response rubyConsolePost(@Context HttpServletRequest request) {
 52       RubyConsole console = getOrCreateConsole(request);
 56       try {
 57           final String cmd = request.getParameter(CONSOLE_COMMAND);
 67           if ("eval".equals(cmd)) {
 69               String commandString = request.getParameter(CONSOLE_COMMAND_STRING);
 70               if (commandString != null) {
 79               try {
 80                   result = console.evalAndWait(commandString, 60000);
 81               }
 92           }
 94       }
118   }

In line 57 the user controlled post parameter CONSOLE_COMMAND is received and in line 67 it is checked if this parameter is equal to the string eval. If it is, the next attacker controlled post variable CONSOLE_COMMAND_STRING is received in line 69 and passed to the function evalAndWait() from the class RubyConsole in line 80. When following the function evalAndWait() we will get to the eval() function as shown below.

src/main/java/emissary/scripting/RubyConsole.java

331   public Object eval(String expression) throws Exception{
332       Object result = null;
333       try{
334           result = rubyEngine.eval(expression,rubyContext);
339       }
349   }

The function eval() receives a Ruby expression as the first parameter which can be controlled by an attacker in order to execute the vulnerable function eval() of the Ruby engine in line 334. This allows an attacker to inject arbitrary Ruby code for execution on the server (S5334).

The Ruby Console is obviously intended as a feature and is not an actual vulnerability. The problem is, however, that the web application does not use CSRF tokens and an adversary can thus abuse any feature of the software within an attack.

Leaking the Admin Password

Further, we detected an Arbitrary File Disclosure and Cross-site Scripting vulnerability. Both can be combined to read arbitrary files from the Emissary server. For example, an attacker could read the stored admin credentials for the HTTP Digest Authentication and then login to Emissary as an administrator to take over the installation.

Arbitrary File Disclosure (CVE-2021-32093)

Emissary’s feature to show certain configuration files contains a File Disclosure vulnerability (S2083) that can be used to read any file from the server. In line 35, the user-controlled HTTP GET variable CONFIG_PARAM is received from the query string. The variable configName is not sanitized and can contain any file path. The content of the opened file in line 44 is then printed in line 45.

src/main/java/emissary/server/mvc/internal/ConfigFileAction.java

32   @GET
33   @Path("/ConfigFile.action")
34   @Produces(MediaType.TEXT_PLAIN)
35   public Response configFile(@QueryParam(CONFIG_PARAM) String configName) {
36       try {
44           String content = IOUtils.toString(
                 ConfigUtil.getConfigStream(configName), StandardCharsets.UTF_8);
45           return Response.ok().entity(content).build();
46       }
51   }

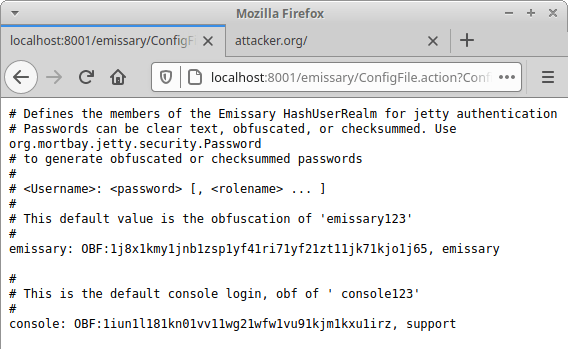

By using a Path Traversal attack and injecting character sequences like ../ a malicious user can traverse through the file system and read any file on the system, including the HTTP Digest Authentication file that contains the secret credentials. However, this feature is only available to authenticated users and in a CSRF attack it is not possible to read the request’s response. A remote attacker needs another vulnerability.

Reflected Cross-site-Scripting (CVE-2021-32092)

We found a Cross-Site Scripting vulnerability (S5131) in the error response message of the DocumentAction class. When a requested document is not found, user input is reflected without any output encoding.

src/main/java/emissary/server/mvc/DocumentAction.java

62   @GET
63   @Path("/Document.action/{uuid}")
64   @Produces(MediaType.APPLICATION_XML)
65   public Response documentShow(
       @Context HttpServletRequest request,
       @PathParam("uuid") String uuid
     ) {
69      final List<IBaseDataObject> payload = wsp.take(uuid);
...
82      return Response.status(400).entity("<error>uuid " + uuid + " not found</error>").build();
92   }

The user controlled GET variable uuid is passed in line 65 via a path. Then, the variable is used in line 69 in the function wsp.take() and if no element is found for the passed uuid, an error message is printed in line 82. So the user-controlled input is concatenated and printed with an error message.

An attacker can therefore craft a malicious link that passes a payload via the uuid parameter which executes JavaScript in the victim's browser. The HTTP response has an XML content type (see line 64) but this does not prevent an attacker from executing an arbitrary JavaScript payload. Once this payload executes in an authenticated victim’s browser it can exploit the File Disclosure vulnerability to read the administrator credentials and send these to an attacker-controlled server. With this, a remote attacker is able to gain access to the credentials and to authenticate. Next to the previously described Code Injection vulnerability, we also reported a File Delete and File Upload vulnerability that could be exploited by the attacker once authenticated.

Timeline

Summary

In this blog post, we analyzed three vulnerabilities found in Emissary. The combination of the vulnerabilities can lead to a complete takeover of an Emissary installation. We evaluated the causes in the Java code and explained how an attacker can exploit them. We also showed that a simple authentication is not enough to secure a web application and how intended features of developers offer a high potential for attackers. If you are hosting an Emissary instance and have not yet updated your installation, we highly recommend that you do so now. Last but not least, we would like to thank the Emissary team who addressed most of the issues in the latest release 6.1.
